IP Power 9850XX is a new generation of the Power Distribution Unit (PDU) & Remote Power Control (RPC) system. With embedded web server and HTTPS protection , 9850XX supports higher grade security as working on Internet. User can control power easily and more safely through the web browser in Windows , Android or iOS system , like Internet Explorer (IE) , Google Chrome , Safari web browser or control through APP in Android or in iOS system .
With 4 buttons on device top, it allows user to direct control manually to each port ON/OFF with fingertip without web browser / APP , also allows remote control power on/off up to 4 separate devices via network . As support SSL & SNMP, user can use public email like Gmail / Hotmail / Yahoo Mail to get the email as the ON/OFF status changed .
User can also control by e-mail without doing port forwarding / port mapping and search the other IP Device in webpage directly and quick .
9850XX supports Auto Ping , Time Scheduler which is more suitable for factory / commercial / office / home automation .
User can get the device status in LOG information or in remote IP address which sent to get LOG message from 9850 ( SYSLOG ) . . For system integrator, there are several popular developing tolls like HTTP/CGI command , Telnet , SNMP , Modbus TCP/IP & BACnet TCP/IP .
The various applications of the 9850XX includes: Power Management, Server Management, Internet Controllable Timer, System Integration, Remote Power Control in Remote locations ………….. etc.
CONDITION:NEW,FACTORY PACKED
Aviosys IP Power 9850GE
Specifications :
- Power input : 15A/90-120VAC, 10A/210-240VAC, 50-60Hz
- Maximum loading of each output: 10Amp
- Maximum total loading 9850 unit : 10Amp
- Fuse protection: 10Amp
- Dimensions: 200 x 140 x 50 mm
- Weight: 990 gram
- Metal enclosure, deep gray color
- Operation Temperature : -10 °C to +60 °C
Package Contents
- 9850GE Unit
- Installation CD : include Manual with SDK and IP Search Software

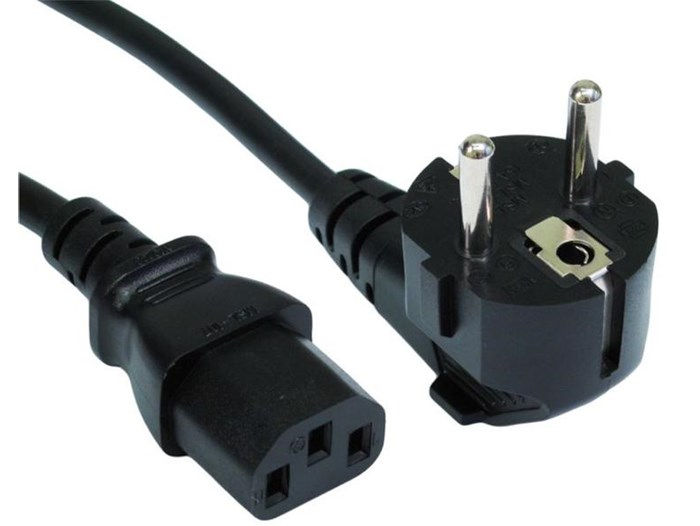

- RB-299A 1.8MTR euro plug male-IEC C13 Female Black cable
