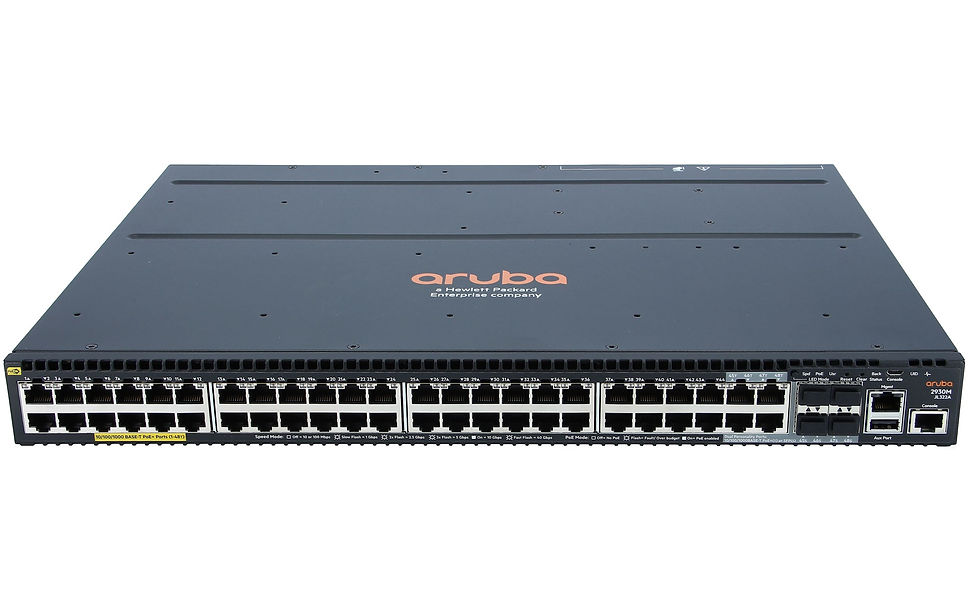

HPE Aruba 2930M JL322A 48G POE+ 1-Slot - switch - 48 ports
The Aruba 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow’s applications. High performance modular stacking for up to 10 switches provides pay as you grow scalability and simplicity. The 2930M supports 10GbE and 40GbE uplinks, Dual Modular Power Supplies, up to 1440 Watts of PoE+, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, robust QoS, RIP, Access OSPF routing, Tunnel Node, PIM, VRRP and IPv6 with no software licensing required.
The Aruba 2930M Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Deployment.
Key Features
  • Aruba Layer 3 Switch with 10 chassis backplane stacking, static, RIP and access OSPF routing, Tunnel Node, ACLs, SDN, and robust QoS
  • Advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
  • Modular 10GbE or 40GbE uplinks and HPE Smart Rate (IEEE 802.3bz), up to 1440W PoE+
  • Models with 24 ports of HPE Smart Rate with IEEE 802.3bz
  • Simple deployment with Zero Touch Provisioning


CONDITION: NEW,FACTORY PACKED

HPE Aruba 2930M JL322A 48G POE+ 1-Slot - switch - 48 ports

₹300,000.00Price

  • General

    Device Type

    Switch - 48 ports - L3 - managed - stackable

    Enclosure Type

    Rack-mountable 1U

    Subtype

    Gigabit Ethernet

    Ports

    44 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP

    Power Over Ethernet (PoE)

    PoE+

    PoE Budget

    1440 W

    Performance

    Throughput: 112 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1 Gbps): 3.1 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Latency (10 Mbps): 98.5 µs ¦ Latency (100 Mbps): 11.8 µs

    Capacity

    IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ RIP routes: 10000 ¦ Static routes: 256

    MAC Address Table Size

    32768 entries

    Jumbo Frame Support

    9220 bytes

    Routing Protocol

    OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR

    Remote Management Protocol

    SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON

    Encryption Algorithm

    MD5, SSL, TLS

    Authentication Method

    RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

    Features

    Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II, LLDP-MED, STP BPDU Guard

    Compliant Standards

    IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz

    Processor

    1 x ARM Cortex-A9: 1.016 GHz

    RAM

    1 GB DDR3 SDRAM

    Flash Memory

    4 GB

    Expansion / Connectivity

    Interfaces

    44 x 1000Base-T RJ-45 PoE+ ¦ 4 x 1000Base-T ¦ 1 x serial (console) ¦ 1 x USB Type B ¦ 1 x 1000Base-T management

    Expansion Slots

    1 (total) / 1 (free) x Stacking Module slot ¦ 1 (total) / 1 (free) x expansion slot

    Power

    Power Device

    Internal power supply (not installed)

    Max Supported Qty

    2

    Voltage Required

    AC 120/230 V (50/60 Hz)

    80 PLUS Certification

    80 PLUS Silver

    Miscellaneous

    Compliant Standards

    CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

    Dimensions & Weight

    Width

    17.4 in

    Depth

    12.8 in

    Height

    1.7 in

    Weight

    10.25 lbs



    Environmental Parameters

    Min Operating Temperature

    32 °F

    Max Operating Temperature

    131 °F

    Humidity Range Operating

    15 - 95% (non-condensing)

    Min Storage Temperature

    -40 °F

    Max Storage Temperature

    158 °F

    Humidity Range Storage

    90% (non-condensing)
